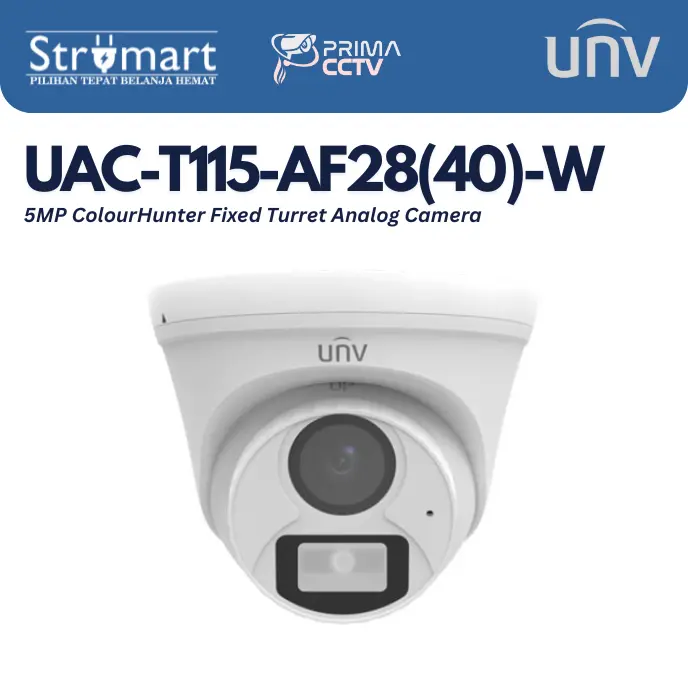

Kamera Uniview UAC-T115-AF28(40)-W 5MP Indoor Ir

Deskripsi Produk

Features 5MP high quality image TVI/AHD/CVI/CVBS Supports IR-cut filter with auto-switch (ICR) Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio transmission via coaxial cables Sensor Pixel 5MP Size 1/2.7" Minimum illumination 0.02 lux (F2.0, AGC ON) 0 lux (IR ON) Lens Lens 2.8mm 4.0mm Lens mount M12 Angle of view H: 102.2° V: 53.9° D: 124.8° H: 82.9° V: 46.1° D: 100.0° Illuminator Illuminator One IR illuminator Illumination distance 20m Lifetime ≥60,000 hours Video Resolution 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) Frame rate TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC Shutter time PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s Image Exposure mode Four modes: Global (default), BLC, HLC, DWDR Day/Night Three modes: Auto (default), Day, Night Digital noise reduction 2D White balance Two modes: Auto (default), Manual WDR DWDR Smart IR Support Flip Supports 180° horizontal flip, 180° vertical flip Defog N/A Audio Microphone Built-in Mic Camera audio TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps Interface Power 5.5mm power interface Video output BNC, supports TVI/AHD/CVI/CVBS Operating environment Temperature -30°C to 60°C (-22°F to 140°F) Humidity ≤95% (RH, non-condensing) Surge protection 4kV General Power DC 12V (±25%), with reverse polarity protection, Max 3.3W Mount Surface mount (default), optional backbox, wall mount bracket, pole mount bracket Dimensions Φ118mm*96mm (diameter*height) Material Plastic Weight 183g (0.40lb) OSD menu language 11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish Certification EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) Safety CE-LVD (EN 62368-1) Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) Protection IP67 (IEC 60529)
